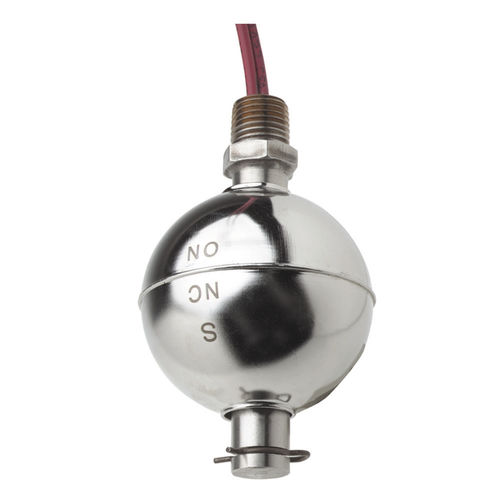

Float level switch LS-1950

for boatsfor storage tankspump

Single level float switch made completely from stainless steel for extremely high temperatures and pressures. Opener / Closer - SPST 100 VA/0.5 A/250 VAC Change-over switch - SPDT 20 VA/0.5 A/250 VAC Switch function - factory setting is NO (normally open) - NO or NC (normally closed) can be selected by reversing the float Fly lead / cabel - FEP, AWG 20, Length 60 cm 1 Silicone, 0.5 mm2 Enclosure - IP64 - Cable: -40 to +150°C Temperature - - Fly lead: -40 to +200°C Medium density - > 750 kg/m3 Max. Pressure - 30 bar Mountig direction - Vertical Tube length L - fixed Tube length (L=86 mm) Process connection - G 1/4- Material - Stainless Steel
