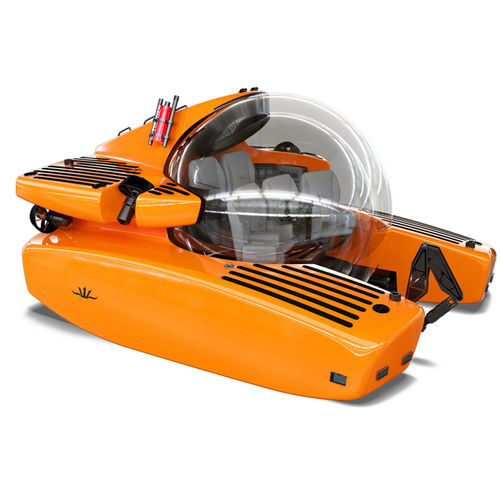

Private submarine 3300/6

The exceptional, optically-perfect acrylic hull and staggered seating arrangements affords everyone an uninterrupted upward, forward and downward view of the fabulous majesty of the ocean. A flexible seating arrangement can easily and rapidly be re-configured from 6-seat to 4-seat configurations, or vice versa, as and when required. OVERVIEW The Triton 3300/6 builds on the venerable Triton 3300/3 design. Accordingly, it offers passengers a spacious and luxurious way in which to spend ten hours beneath the surface of the sea. The Triton 3300/6 has been designed for launch and recovery using standard tender davits found in yacht garages. The generous internal volume provides ample leg, head and elbow room for all six passengers, equipment, refreshments and more. For the ultimate luxury, the Triton 3300/6 cabin can be configured to seat four. TECHNICAL The table below shows the general specifications for the Triton 3300/6. GENERAL Depth - 3,280ft / 1,000m Payload - 1,760lb / 800kg Crew - Pilot + 5 Pax Speed - 3kn Endurance - 10+ hours Main Ballast - 8,800lb / 4,000kg Variable Ballast - 550lb / 250kg SIZE & WEIGHT Length - 14.9ft / 4.55m Width - 11.8ft / 3.6m Height - 7.9ft / 2.4m Weight - 22,000lbs / 10,000kg Pressure Hull Volume - 180cuft / 5.1m2 Hatch Inner ⌀ - 27.5in /700mm SYSTEMS 24v Supply - Dual Supply + Emergency Main Battery - 45 kWh Main Thrusters - 2x5 hp / 2x3.7 kW Vertran Thrusters - 2x5 hp / 2x3.7 kW Control - Joystick, Touchscreen & Manual Override External Lights - 6+ x 20,000 lumen LED Life Support - Oxygen + CO2 Scrubber
