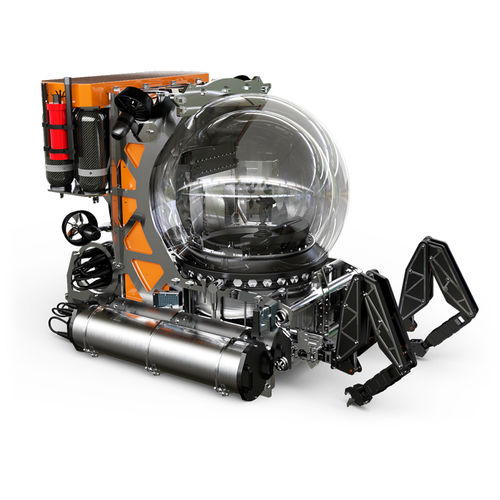

Professional submarine 3300/1

THE SOLO SUB The 3300/1 Minimal Displacement’s size and weight make it ideal for research and investigation tasks. The sub can be used to discover and analyse scientific and archaeological objects on the seabed, or to perform support tasks beyond the capabilities of a diver or ROV. OVERVIEW The Triton 3300/1 MD is a highly versatile submersible. It is ideally suited to support operations where its power, manoeuverability and generous payload enable it to perform tasks that would typically require a tethered ROV. The Triton 3300/1 MD’s modular construction offers great mission flexibility and allows for rapid re-configuration between dives and tasks. Interchangeable tooling frames make the installation of specialized equipment skids simple, fast and straight-forward. TECHNICAL The table below shows the general specifications for the Triton 3300/1 MD. Additional items can be ordered as options. Details are provided on the Equipment page. GENERAL Depth - 3,280ft / 1000m Payload - 440lb / 200kg Crew - 1 Pilot Speed - 3kts Endurance - 6 hours Main Ballast - 440lb / 200kg Variable Ballast - 88lb / 40kg SIZE & WEIGHT Length - 6.6ft / 2.0m Width - 5.2ft / 1.6m Height - 6ft / 1.84m Weight - 4,620lbs / 2,100kg Pressure Hull Inner ⌀ - 41in / 1,042mm Pressure Hull Thickness - 4.1in / 104mm Hatch Inner ⌀ - 27.6in / 700mm SYSTEMS 24v Supply - Dual Supply + Emergency Main Battery - 11 kWh Main Thrusters - 2x2.7 hp / 2x2 kW Vertran Thrusters - 2x2.7 hp / 2x2 kW Control - Joystick, Touch Screen & Manual Override External Lights - High Output LED Life Support - Oxygen + CO2 Scrubber
