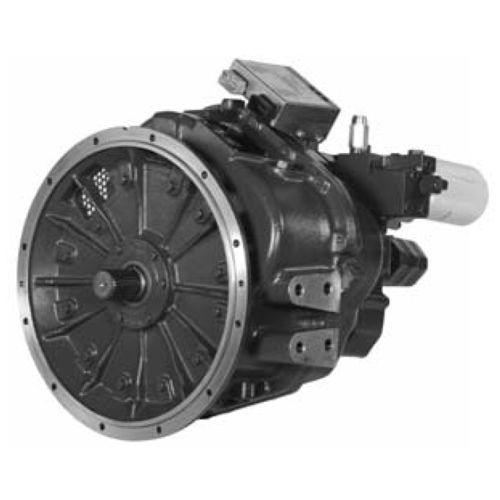

Ship reduction gearbox MGX-5086A

engine

Standard Equipment Near coaxial, aluminum housing 7° down angle on output shaft Electric GP-valve with manual override EC050 Profile module – interface for engagement signals Oil strainer and oil filter Options SAE J617 housing no. 1 SAE J617 housing no. 2 Flexible coupling for 14” flywheel (SAE J620 size 355) Flexible coupling for 11.5” flywheel (SAE J620 size 290) EC050 E-Troll module – interface for engagement & trolling signals Harness with single point interface to Twin Disc EC300 control system Oil cooler with thermostatic bypass valve Companion flange/ bolts set Monitoring devices to customer’s specification Mounting brackets Live PTO: SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm) SAE J744 size 101-2/4, 22-4 (SAE “B”, 2/4-bolt, max. 197 Nm) SAE J744 size 101-2/4, 25-4 (SAE “B-B”, 2/4-bolt, max. 337 Nm)
