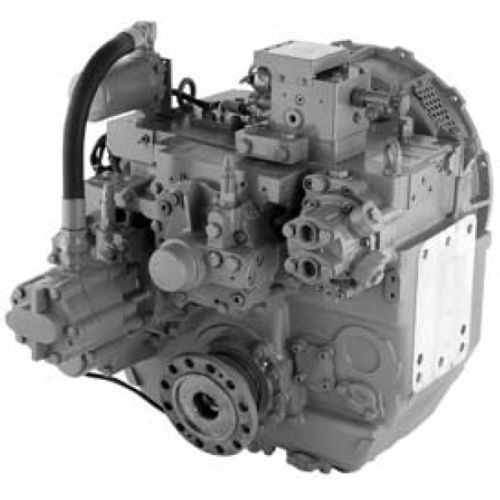

Ship reduction gearbox MGX-6599A

engine

Standard Equipment Vertical offset, aluminum housing 10° down angle on output shaft Electric GP-valve with manual override EC050 Profile module – interface for engagement signals Integral oil cooler for raw water cooling Oil strainer and oil filter Options SAE J617 housing no. 1 SAE J617 housing no. 0 Flexible coupling for 14” flywheel (SAE J620 size 355) Flexible coupling for 18” flywheel (SAE J620 size 460) Input flange for freestanding installation EC050 E-Troll module – interface for engagement & trolling signals Harness with single point interface to Twin Disc EC300 control system Output shaft driven trailing pump Companion flange/ bolts set Monitoring devices to customer’s specification Mounting brackets Live PTO SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) – max. 600 Nm Hydraulic Clutchable PTO SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) – max. 600 Nm Secondary live PTO for power steering pumps SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt) – max. 75 Nm or SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt) – max. 75 Nm
