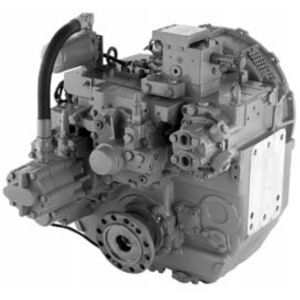

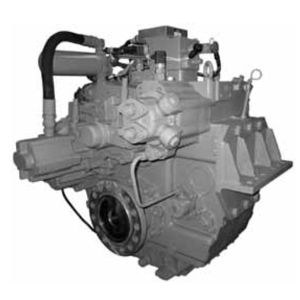

Ship reduction gearbox MGX-62000SC-HL/HRengine
Add to favorites
Compare this product
Characteristics
- Application domain
- for ships
- Applications
- engine
- Power
2,248 kW, 2,529 kW, 2,950 kW
(3,056.4 hp, 3,438.5 hp, 4,010.9 hp)- Rotational speed
1,200 rpm, 1,600 rpm, 1,800 rpm
(7,540 rad.min-1, 10,053 rad.min-1, 11,310 rad.min-1)
Description
Standard Equipment
Horizontal offset, aluminum housing
Input hub for freestanding installation
Electric GP-valve with manual override
EC050 Profile module – interface for engagement signals
Mounted oil cooler for raw water cooling
Oil strainer and oil filter
Options
Harness with single point interface to Twin Disc EC300 control system
Oil cooler for fresh water cooling
Output shaft driven trailing pump
Companion flange/ bolts set
Monitoring devices to customer’s specification
Mounting brackets
Live PTO:
SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt), max. 209 Nm
SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1187 Nm)
Hydraulic clutchable PTO:
SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1186 Nm)
