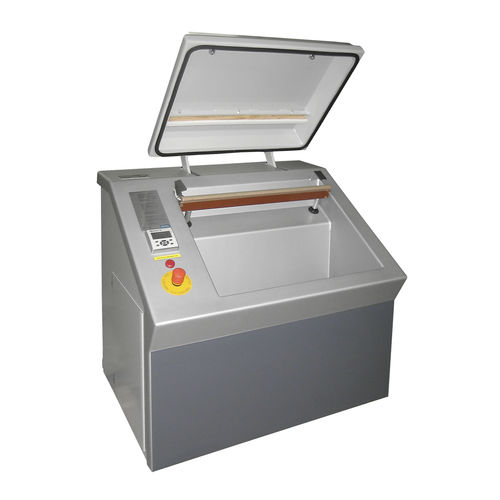

Ship waste compactor

for yachts

The waste packagers of vacompact differ in terms of waste volume, waste collection, loading and device dimensions. Features like injection of disinfectant, odour blocker and exhaust air filter are included in the basic equipment. Each device can be supplemented with rolls. The special vacompact waste bags are available in the strength of 80 to 140 μm, 5-ply, gastight, certified and with declaration of no objection. Technical Details 90 litres waste volume per vacuum process Waste collection outside the unit. Material: powder-coated VA-steel Connected load: 230 V-50Hz-1KW Security: EN 60204-VDE 0113 Safety category: IP 54 Noise emission: 62 dB Control: SPS Basic Equipment Injection of disinfectant and odour blocker. UVC exhaust air filter. Dimensions Weight: 140 kg Width: 886 mm Height: 891 mm Depth: 735 mm Waste bags Volume: 90 litres Lenght: 1050 mm Width: 580 mm Strength: 80 to 140 μm Security & Maintenance All functions are controlled by PLC (Programmable Logic Controller) and touch screen. Vacompact fullfills all HACCP criteria and requirements (Hazard Analysis Critical Control Points)! Moreover, the system is controlled via an emergency switch. The waste packagers of vacompact are almost maintenance free. Thanks dry running vacuum pump and without hydraulic - neither oil nor water - must be filled. The available power supply is sufficient. Notice Vacompact is not suitable for the packaging of liquids! Very sharp edged waste such as injection needles and crushed glass, are vacuumed in extra tear-resistant vacompact waste bags with 140 μm.
