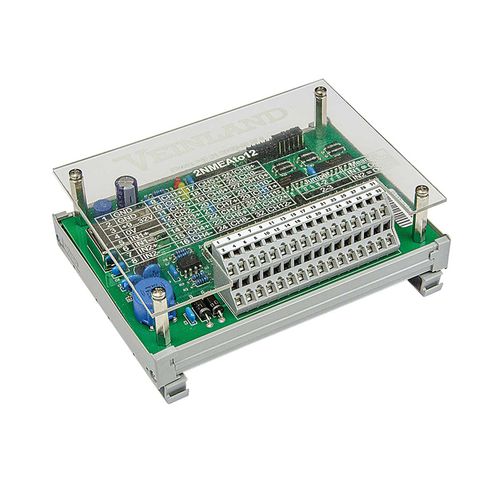

NMEA expander 2NMEAto12

The 2NMEAto12 used to distribute the data from two serial sources (NMEA) to max. 12 receiver (RS422 or NMEA). The two NMEA inputs of the module are adjustable individually with the help of jumpers to the different outputs and are galvanically decoupled from power supply as well as from the outputs. Main Features power-supply - 9-32VDC / nom. 24V; 7,2W dimensions - 145mm x 107mm x 60mm weight - 255g data-rates - NMEA-In/Out RS422 up to 115 kbps applications - Distribution and decoupling of signal sources (e.g. GPS) to several different receivers (e.g. radar, ECDIS, VDR, GMDSS) Standard(s) applied - IEC 60945 approval - DNV GL (Certificate No. TAA00000M0)
