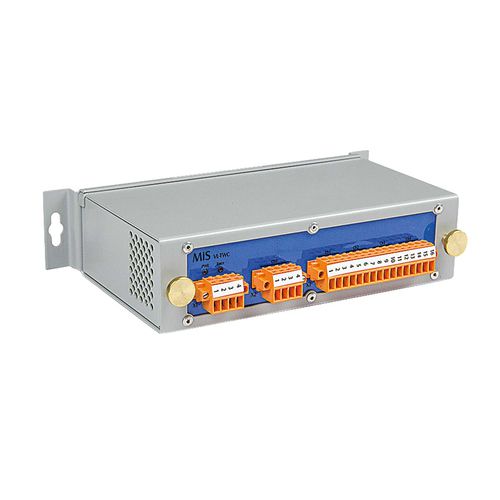

Data multiplexer-converter VL-TWCNMEANMEAfor ships
Add to favorites
Compare this product
Characteristics
- Type
- data
- Input
- NMEA
- Output
- NMEA
- Application domain
- for ships
Description
The True Wind Converter calculates the true wind information from different input data. The following data are from the NMEA telegrams used: $–VTG, $–MWV, $–HDT or $–HDG. The NMEA inputs are galvanically isolated from the RS422 outputs.
Main Features
power-supply -
9-32VDC / nom. 24V; 1W
dimensions -
176mm x 104mm x 41mm
weight -
470g
data-rates -
1NMEA-In/Out according to IEC61162-1/RS422 – 4800 up to 115200bps 4NMEA-In according to IEC61162-1 – 4800 up to 38400bps
approval -
IEC60945
