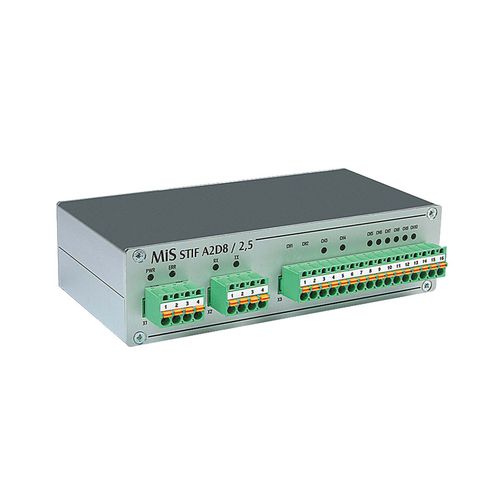

Interface for ships (steering, NMEA) STIF A2D8
Add to favorites
Compare this product
Description
The STIFA2D8 is used for the installation of Voyage Data Recorders (VDR), electronic charts
(ECDIS) or other displays used in the maritime sector.
The recording of analog and digital signals is also possible in the form of measurement and
automation technology.
Main Features
power-supply -
9-32VDC / nom. 24V; 3W
dimensions -
165mm x 85mm x 44mm
weight -
500g
interfaces -
Power/Error: 1x 4 poles RM5
NMEA-In/Out: 1x 4 poles RM5
2Analog-In and 8Digital-In: 1x
16 poles RM5
applications -
Processing of control and machine data into NMEA telegrams
approval -
IEC60945 DNV GL No. 5485208 HH
