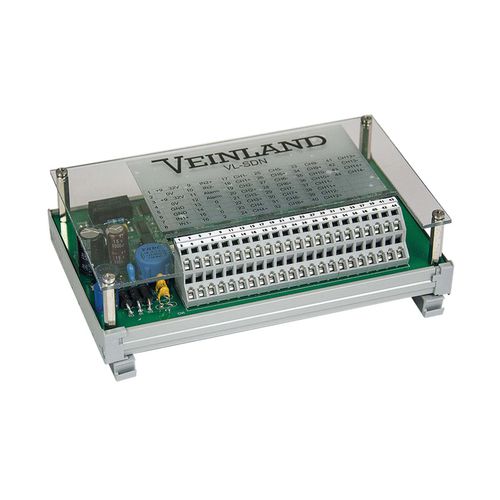

Boat switch VL-SDN

electrical circuitautomatic

The VL-SDN is used for the distribution of redundant NMEA. With its 2 galvanically isolated NMEA inputs, the module automatically choose between the two inputs, and then forward it to 12xRS422 and 2xRS232 outputs. If the main input does not receives any signals, the module is then automatically switches to the second input. An option of manual switching between 2 inputs is also possible. Through 2 voltage inputs, the power supply 9-32VDC is designed as a fail-safe (MSB-ESB). Main Features power-supply - 9-32VDC / nom. 24V; 10W dimensions - 173mm x107mm x 60mm weight - 265g data-rates - NMEA-In according to IEC61162-1 NMEA-Out according to IEC61162-1/RS422 up to 38400bps Serial-Out/RS232 up to 38400bps applications - Distribution and decoupling of redundant NMEA (e.g. GPS) to several different receivers (e.g. radar, ECDIS, data Logger, GMDSS) approval - IEC60945 DNV GL No. TAA00000M0
