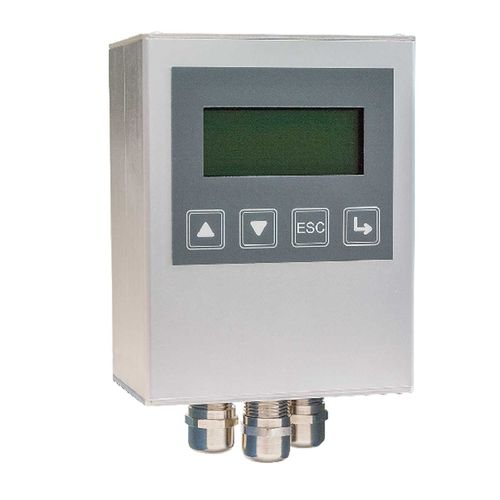

Signal converter VL-S2N

analogNMEAdigital

The converter consists of 3-phase synchro signals in the NMEA Standard HDT. The inputs with the jumpers can be adjusted to the present signal voltages. The ratio must be 1:1. Main Features dimensions - 134mm x 104mm x 64mm weight - 650g operating temperature - -15°C up to +70°C signal-connections - Power, NMEA-In/Out: 10 poles double-level terminal, Syncro: 4x 3 poles PCB connector resolution - NMEA-In/Out according to IEC61162-2, Syncro: 20 up to 150VAC, 50 up to 500Hz connections - Terminals up to 2,5mm² applications - Adaptation of older ship compasses to devices that require a NMEA-telegrams approval - IEC60945, IACS E10
