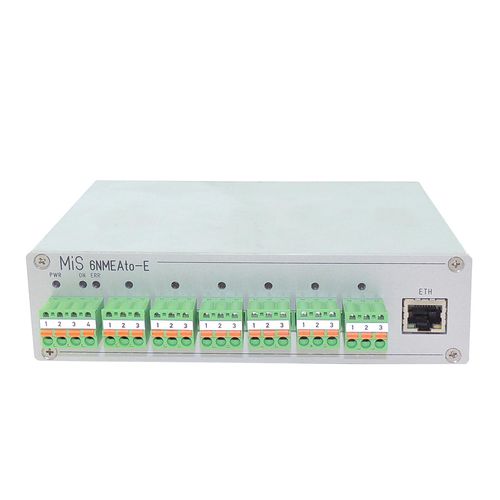

Boat network interface 6NMEAto-E

The 6NMEAto-E is capable of merging signals from 6 NMEA sources with a network connection in a simple and reliable way. Programmable filters or separators can be found at each input. The data output is only possible via network. Main Features Power Supply - 24V DC +30/-20%, max. 12W Dimension - 165mmx112mmx44mm Weight - 710g Input/Output - Sender/Transmitter and receiver galvanically isolated Connection via plug connector RM5,08 Network - 1x Ethernet 10/100 Mbit/s Configuration - Web-based configuration and filter functions for every channel – Baud rate for each port separately adjustable Fields of Application - Collecting of serial signals and ethernet distribution in maritime, industrial and security applications Other Features - Rail or wall mounting Protection Class - IP20 Temperature - Storage Temperature: -40 to 85°C Operating Temperature: -15 to 55°C Standard(s) Applied - IEC 60945, IEC 61162-1/-2/-450 Type Approval - DNV, Cert-No: TAA00002GC Rev. 2
