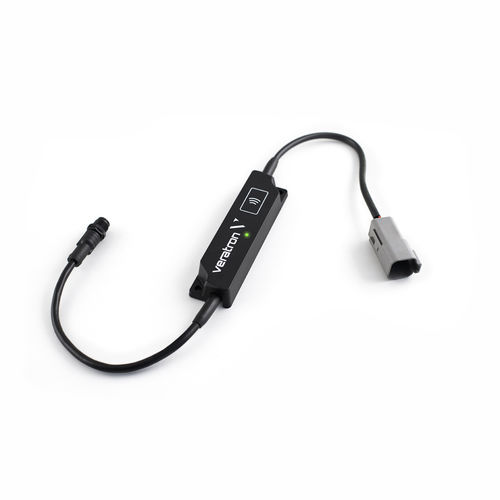

J1939 to NMEA 2000® network gateway LinkUp

The Link Up J1939 provides an easy method to convert engine or vessel information to NMEA 2000®. The data are then available for being displayed on any OceanLink, AcquaLink, or more in general on any glass cockpit NMEA 2000 display device. Configuring Link UP gateways is simple using a mobile device and the companion Link UP Configurator App for Android or iOS. Each device has a built-in, passive NFC antenna, so the parameters of the engine, such as engine instances or the alarm settings, are wirelessly configured on the mobile device which is then “tapped” against the LinkUp device for instant data download. Specifications: 6 – 16.5 V operating voltage (from NMEA-Network) < 100mA power consumption -30 / +80°C operating temperature cable lengths 2 * 25cm SAE J1939 network plug: Deutsch DT04-6P (Male) IPX7 protection class UL94-HB
