Boat indicator ViewLinefor shipsfor sailboatsfluid level
Add to favorites
Compare this product
Characteristics
- Application domain
- for boats, for ships, for sailboats
- Type
- fluid level
- Display
- analog
- Applications
- for water tanks
- Power supply
Min.: 12 V
Max.: 24 V
- Diameter
60 mm
(2 in)- Cutout diameter
52 mm
(2 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Available in black and white with a selection of bezels in different colors (black, white, chrome) and shapes.
Dial scales: 0-1 / Empty - Full

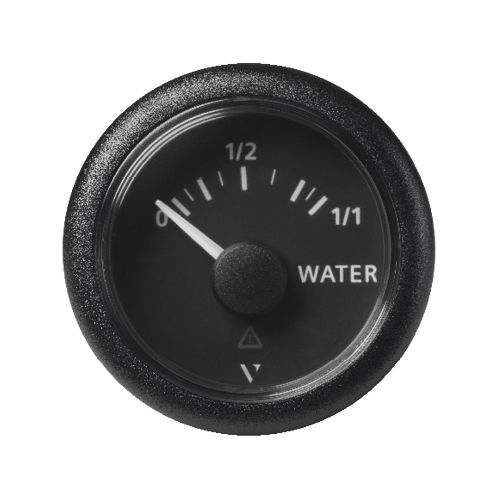

ViewLine 52 mm Liquid Level gauge with anti-fog plastic double lens promise maximum precision and stylish design. One LED warning is integrated as a standard
Specifications:
8 pole Tyco / Hirschmann MQS plug
+/- 3.6° angle degree accuracy over the entire display range
Operating voltage 8 – 32 V
Integrated warning alarm
Input signal: standard Ω values
Optional make point switch can be connected
Reverse polarity protection
Anti-fog double lens
Front side protection rating IP67
52 mm installation diameter
50 mm installation depth
