Boat indicator ViewLinefor shipspressureanalog
Add to favorites
Compare this product
Characteristics
- Application domain
- for boats, for ships
- Type
- pressure
- Display
- analog
- Applications
- engine
- Power supply
Min.: 12 V
Max.: 24 V
- Diameter
60 mm
(2 in)- Cutout diameter
52 mm
(2 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description

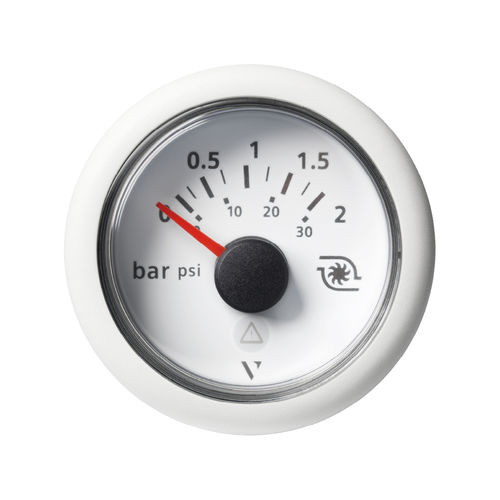

Available in black and white with a selection of bezels in different colors (black, white, chrome) and shapes.
Measurement Ranges: 0-2bar / 0-30PSI
ViewLine 52 mm Pressure Gauges are equipped with a red warning LED as a standard. The warning point depends on the chosen pressure sensor with warning contact or can be controlled by installing a make-point switch. Anti-fog plastic double lens, maximum precision and stylish design.
Specifications:
8 pole Tyco / Hirschmann MQS plug
+/- 3.6° angle degree accuracy over the entire display range
Operating voltage 8 – 32 V
Integrated warning alarm
Input signal: standard Ω values
Optional make point switch can be connected
Reverse polarity protection
Anti-fog double lens
Front side protection rating IP67
52 mm installation diameter
50 mm installation depth
