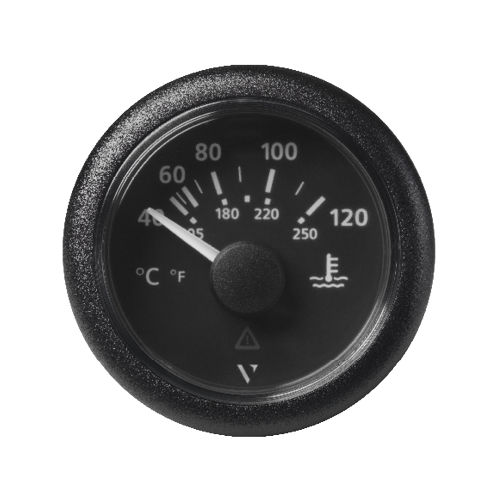

Boat indicator ViewLinefor shipstemperatureanalog
Add to favorites
Compare this product
Characteristics
- Application domain
- for boats, for ships
- Type
- temperature
- Display
- analog
- Applications
- engine
- Power supply
Max.: 24 V
Min.: 12 V
- Diameter
60 mm
(2 in)- Cutout diameter
52 mm
(2 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Available in black and white with a selection of bezels in different colors (black, white, chrome) and shapes.
Measurement ranges: 40-120°C / 120-250°F
ViewLine Temperature Gauge with Anti-fog plastic double lens promise maximum precision and stylish design with choice of nine various bezels. One LED warning light is integrated as a standard.
Specifications:
8 pole Tyco / Hirschmann MQS plug
+/- 3.6° angle degree accuracy over the entire display range
Operating voltage 8 – 32 V
Integrated warning alarm
Input signal: standard Ω values
Optional make point switch can be connected
Reverse polarity protection
Anti-fog double lens
Front side protection rating IP67
52 mm installation diameter
50 mm installation depth
