Shipyard crane VGIMgantry
Add to favorites
Compare this product
Characteristics
- Application domain
- for shipyards
- Type
- gantry
- Lifting capacity
Min.: 1,000 kg
(2,204.6 lb)Max.: 6,000 kg
(13,227.7 lb)
Description

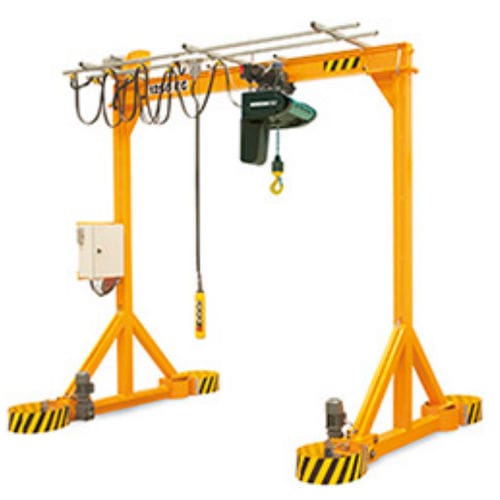

GANTRIES VGIM
Motorized gantry crane
for loads from 1,000 to 6,000 kg
VERLINDE workshop motorized gantry crane for indoor and outdoor use.
The VGIM gantry can be moved loaded on a smooth, clean floor.
Mechanic-welded construction.
2 motorized non swivel polyurethane wheels.
2 castor polyurethane wheels.
Electrics in cubicle with movable pendant (low voltage control 48V).
Dual travelling speed 10 m/min & 20 m/min with inverter.
Swiveling of the gantry by inversions of the two motors.
Self rotating with 2 speed.
Reversing switch on the pendant.
4 full stops.
Protection : 3 layers.
RAL 1028 yellow polyurethane finish.
Maximum hoisting speed = 16 m/min.
Maximum travelling speed = 10 m/min.
Main switch.
Power feeding line.
Reel 18 m P < 2 kW.
Reel 18 m P < 7 kW.
Locking on wheel.
