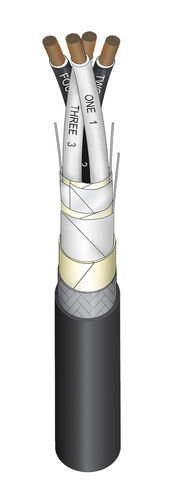

Electric cable EG SERIES

for boats

APPLICATION Flexible Instrumentation cables suitable for all marine applications, where mechanical or EMC protection is required. CONSTRUCTION Conductor: Finely stranded annealed copper to ASTM B3-01, ASTM B33-00 and IEC 60228. Significantly exceeds IEEE-1580 Table 11. Insulation: LSFLEX R-30, Cross-linked, Polyolefinic, Thermoset, Flame Retardant, Low Smoke, Zero Halogen (LSX to IEEE-1580) (HF-90 to IEC 60092-351) Splash resistant to oil, skydrol, gasoline, acid, sea water. Resists ozone and UV. Screen: Individual and Collective Aluminum/Laminate Tape Drain Wire: Tinned annealed copper Isolation Tape: Polyester Assembly: Components cabled with filler as required and overall binder tape Bedding Tape: Polypropylene Braid/Armor Options: Galvanized Steel Wire Braid (90%), Tinned Copper Wire Braid (90%) Ripcord: High strength ripcord under jacket Jacket: LSFLEX S-50, Polyolefinic, Flame Retardant, Low Smoke, Zero Halogen (TOP/TPPO to IEEE-1580) (SHF-1 to IEC 60092-359) Splash resistant to oil, skydrol, gasoline, acid, sea water. Resists ozone and UV. Armor (Optional): All constructions are available with Overbraid Armor of either Aluminum or Bronze. OPERATING TEMP -40˚C to 90˚C VOLTAGE RATING 250 Volts STANDARDS ASTM B3-01, ASTM B33-00, IEEE-45, IEEE-1580, IEEE-1202 IEC 60228, IEC 60092-350, IEC 60092-376, IEC 60332-1 IEC 60332-3(A), IEC 60754-1&2, IEC 61034-1&2 APPROVALS USCG, ABS, LR, DNV, Transport Canada Marine Safety
