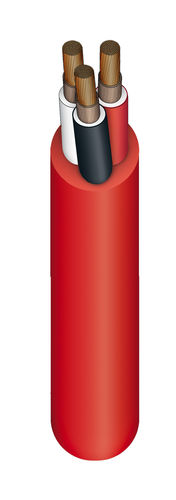

Electric cable RR SERIES

for boats

APPLICATION Flexible shipboard cable is suitable for all marine application, where circuit integrity is required under fire conditions. CONSTRUCTION Conductor: Finely stranded annealed tinned copper to ASTM B3-01, ASTM B33-00 and IEC 60228. Significantly exceeds IEEE-1580 Table 11 (available in plain or tinned) Insulation: LSFLEX R-30, Cross-linked, Polyolefinic, Thermoset, Flame Retardant, Low Smoke, Zero Halogen. Jacket: LSFLEX S-50, Polyolefinic, Flame Retardant, Low Smoke Zero halogen (TPO/TPPO to IEEE-1580, SHF-1 to IEC 60092-359) Splash resistant to oil, skydrol, gasoline, acid, sea water. Resists ozone and UV. Flame Barrier: Fire Resistant, Halogen Free, Glass Mica Tape Assembly: Conductors cabled with filler as required and overall binder tape or Aluminum/Polyester Shield + drain wire Ripcord: High strength ripcord under jacket Armor (Optional): All constructions are available with Overbraid Armor of either Aluminum or Bronze. OPERATING TEMP -40˚C to 90˚C VOLTAGE RATING 600/1000 Volts STANDARDS ASTM B3-01, ASTMB33-00, IEEE-45, IEEE-1580, IEEE-1202 IEC 600228, IEC 60092-350, IEC 60092-353, IEC 60331, IEC 60331-11, IEC 60331-21, IEC 60332-1, IEC 60332-3(A), IEC 60754-1&2, IEC 61034-1& 2
