Boat propulsion system E-POD
electric

Boat propulsion system - E-POD - VETUS - electric
Boat propulsion system - E-POD - VETUS - electric
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Other characteristics
electric
Power

10.2 kW
(13.9 hp)

Description

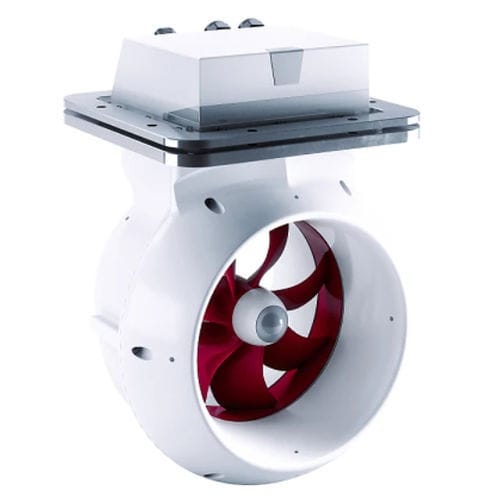

The E-POD combines the motor, suspension, cooling, gearbox, clutch, propeller shaft and propeller into one complete system. Description This space-saving solution makes the engine box and through-boat propeller shaft redundant, opening up the floor space and making a completely new boat design possible. Another unique feature of the E-POD is that there are no rotating or vibrating parts inside the boat. Better still, the E-POD requires no shaft or shaft bearings. The propeller submerged in the water outside the boat is powered directly, being the rotor of the energy-efficient permanent magnet brushless induction motor drive. To reduce propulsion noise even further, the propeller is designed to minimize cavitation while maintaining maximum propulsion power. Maximum motor power and long distances on a single battery charge result from efficient motor management and direct 360° liquid cooling, so you can enjoy a full day on the water with no limitations. Supplied as standard with: MPE1KB key switch, an all-in-one solution: V-CAN power supply, external 12V power supply and anti-theft MPE1MB monitoring panel - V-CAN monitoring, battery indication, motor alarms and motor status All-in-one system solution: integrated cooling system, thrust bearing, shaft system and propeller Specifications Max. speed (RPM) - 1280 Voltage (V) - 48 Weight (kg) - 61 Maximum input current draw - 255 Height (mm) - 420 Width (mm) - 378 Motor type - PMAC Permanent Magnet brushless induction motor Max. torque - 84 Nm Cooling systems - Direct 360º cooling; submerged in water Indicative comparable combustion engine - 20 hp (max. input 9,1 kW / 11,3 kW peak) Indication for suitable boat length - up to 11 meter or 7 ton
