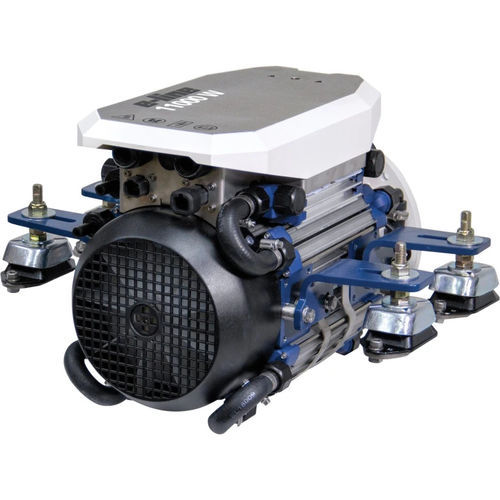

Inboard engine ELINE110
propulsionelectricboating

Inboard engine - ELINE110 - VETUS - propulsion / electric / boating
Inboard engine - ELINE110 - VETUS - propulsion / electric / boating
Inboard engine - ELINE110 - VETUS - propulsion / electric / boating - image - 2
Add to favorites
Compare this product


Characteristics

Type
inboard, propulsion
Power source
electric
Market
boating
Technology
brushless
Cooling system
water-cooled
Power

22 ch
(22 hp)

Engine speed

1,600 rpm
(10,053 rad.min-1)

Length

485 mm
(19 in)

Width

504 mm
(20 in)

Height

335 mm
(13 in)

Weight

71 kg
(157 lb)

Description

The E-line 11kW Inboard Electric Propulsion Motor is a liquid-cooled, low-maintenance electric boating solution. The optimised design provides the highest efficiency in its class, offering you more time to traverse the waters on a single charge and reduce energy consumption. The Motor brings you peace and tranquility when cruising on the water without being distracted. Designed to be energy-efficient, the system requires less battery capacity compared to traditional electric motors. This facilitates a more compact installation, without compromising on performance. To ensure optimal performance and prevent overheating, the motor is equipped with a liquid cooling system. This helps maintain a stable operating temperature enhancing the motor's longevity and reliability. The motor features Active Electronic Braking, which offers rapid deceleration and precise control, enhancing safety and maneuverability.With a peak power of 13,3 kW, you'll have the acceleration you desire. Whether you're exploring open waters or navigating tight spaces, this motor will provide the responsiveness you need. Supplied With Swap & Go motor brackets and motor mounts type EMX65. Integrated thrust bearing. Mounting flange 4" suitable for Combiflex 12, Bullflex type 1. MPE1KB key switch - all-in-one solution; V-CAN power supply, external 12 VDC power supply and anti-theft. MPE1MBV monitoring panel - V-CAN monitoring, battery indication, motor alarms and motor status. IV4812360 converting 48 VDC to the required V-CAN power supply 12 VDC. Additional Parts Required One of the E-Drive V-CAN Control Lever with different propulsion modes to enable the right power at the right moment.

Catalogs

No catalogs are available for this product.

See all of VETUS‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

Boot 2025
Boot 2025

18-26 Jan 2025 Dusseldorf (Germany) Hall 10 - Stand D40
