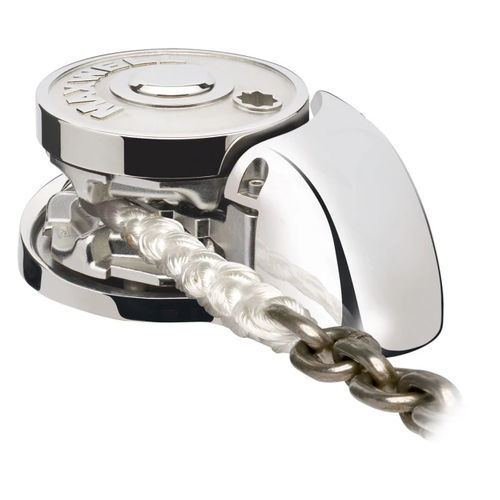

Electric windlass P10497 series

for boatsverticalabove deck

The RC12HD is designed for use with 10 mm to 13 mm (3/8" to 1/2'') short link chain with 18 mm to 24 mm (3/4''to 7/8'') Nylon rope, the motor and gearbox are sized to meet typical Classification Society test requirements for 12.5 mm U1 Stud link chain. Description This design is particulary well suited to vessels requiring high service speeds such as patrol vessels as the reduced weight of rope/chain combination rodes removes weight from the front of the vessel. The RC12HD is fitted with a heavy duty fan cooled DC motor and fin cooled gearbox allowing running for extended periods. The RC12HD is available with either a 24VDC or Hydraulic motor. Run time on the DC version varies with load from continuous operation at loads up to 300kgf to a 5 minute run time at loads of 700kgf. The RC12HD features Maxwell's revolutionary and patented Wave Design ™ chainwheel.
