Rigid solar panel SPM040201200
36 cells60 cells72 cells

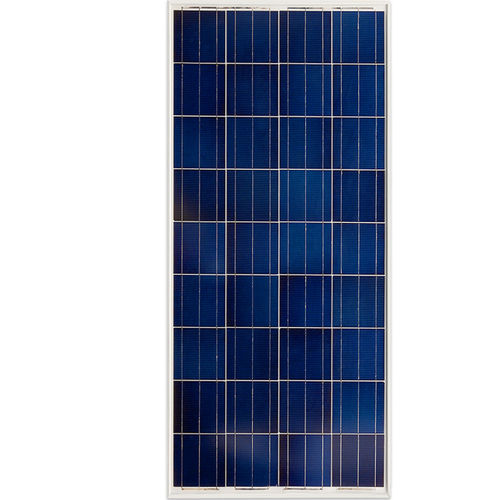

Rigid solar panel - SPM040201200 - Victron Energy - 36 cells / 60 cells / 72 cells
Rigid solar panel - SPM040201200 - Victron Energy - 36 cells / 60 cells / 72 cells
Rigid solar panel - SPM040201200 - Victron Energy - 36 cells / 60 cells / 72 cells - image - 2
Rigid solar panel - SPM040201200 - Victron Energy - 36 cells / 60 cells / 72 cells - image - 3
Rigid solar panel - SPM040201200 - Victron Energy - 36 cells / 60 cells / 72 cells - image - 4
Rigid solar panel - SPM040201200 - Victron Energy - 36 cells / 60 cells / 72 cells - image - 5
Rigid solar panel - SPM040201200 - Victron Energy - 36 cells / 60 cells / 72 cells - image - 6
Rigid solar panel - SPM040201200 - Victron Energy - 36 cells / 60 cells / 72 cells - image - 7
Add to favorites
Compare this product


Characteristics

Structure
rigid
Number of cells
36 cells, 60 cells, 72 cells
Other characteristics
for boats
Peak power (Wp)

Min.: 20 W

Max.: 360 W

Voltage at maximum power

Min.: 18.4 V

Max.: 38.4 V

Max power current (Imp)

Min.: 1.1 A

Max.: 9.4 A

Open circuit voltage (Voc)

Min.: 22 V

Max.: 47.4 V

Short circuit current (Isc)

Min.: 1.2 A

Max.: 10.2 A

Weight

Min.: 1.9 kg
(4.2 lb)

Max.: 23 kg
(50.7 lb)

Length

Min.: 440 mm
(17 in)

Max.: 1,980 mm
(78 in)

Width

Min.: 350 mm
(14 in)

Max.: 1,002 mm
(39 in)

Thickness

25 mm, 30 mm, 40 mm
(1 in, 1 in, 2 in)

Description

Low voltage-temperature coefficient enhances high-temperature operation. Exceptional low-light performance and high sensitivity to light across the entire solar spectrum. 25-Year limited warranty on power output and performance. 5-Year Limited warranty on materials and workmanship. Sealed, waterproof, multifunctional junction box gives high level of safety. High performance bypass diodes minimize the power drop caused by shade. Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation. A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems. Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance. Pre wired quick-connect system with PV-ST01 connectors.
