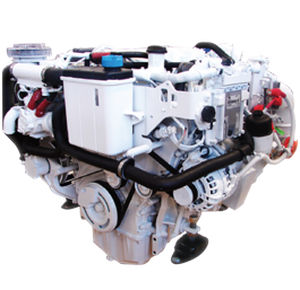

Inboard engine MR 506 SS3dieselboatingvariable geometry turbocharger
Add to favorites
Compare this product
Characteristics
- Type
- inboard
- Power source
- diesel
- Market
- boating
- Technology
- variable geometry turbocharger, common rail
- Engine type
- V
- Cooling system
- water-cooled
- Pollution control standard
- Tier 3
- Power
230 ch
(230 hp)- Number of cylinders
6 unit
- Engine speed
4,000 rpm
(25,133 rad.min-1)- Bore
83 mm
(3.3 in)- Stroke
92 mm
(3.6 in)- Length
850 mm
(33 in)- Width
880 mm
(35 in)- Height
770 mm
(30 in)- Weight
365 kg
(805 lb)
Description
The new MR506SS3 engine offers a power of 230 HP and a torque of 500Nm at 2200 RPM. The main technical features are the 2000 bar injection system, a double chain driven overhead camshaft and 4 valves per cylinder.
Thanks to the new variable geometry VGT turbocharger with ball bearings and a water cooled turbine, the engine is able to develop both a very high specific power and an immediate response from low revolutions.
Reliable, fast, ecological and with low noise levels, the new V6 diesel engine of the MR506 family is able to meet the needs of every yachtsman.
Catalogs
MR 506 SS3 230
2 Pages
