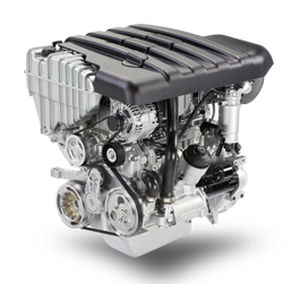

Inboard engine MR 704 LSdieselboatingturbocharged
Add to favorites
Compare this product
Characteristics
- Type
- inboard
- Power source
- diesel
- Market
- boating
- Technology
- turbocharged, common-rail
- Cooling system
- water-cooled
- Other characteristics
- 4-stroke
- Power
170 ch
(170 hp)- Displacement
3 l
(1 gal)- Number of cylinders
4 unit
- Engine speed
3,800 rpm
(23,876 rad.min-1)- Bore
94 mm
(3.7 in)- Stroke
100 mm
(3.9 in)- Length
850 mm
(33 in)- Width
758 mm
(30 in)- Height
805 mm
(32 in)- Weight
360 kg
(794 lb)
Description
The MR704LS is a 4-stroke, turbocharged and aftercooled diesel engine with electronically controlled direct injection., 2.8L displacement. It offers excellent performance with low fuel consumption.
Cooling is controlled by separate fresh and salt water circuits, with extractable hoses for easy maintenance.
La turbina ed il collettore di scarico sono raffreddati ad acqua dolce per diminuire le pari calde a bordo.
The oil circuit (which is cooled by means of a fresh water heat exchanger), water and air circuits have been designed to reduce external flexible pipes to minimum to reduce loss of liquids in the bilge.
The displacement of 2.8L combines great reliability and a high torque at low revs.
The dimensions and weight of the engine make the engine easy to install in small spaces.
