Inboard engine MR 706 LXdieselboatingturbocharged
Add to favorites
Compare this product
Characteristics
- Type
- inboard
- Power source
- diesel
- Market
- boating
- Technology
- turbocharged, common rail
- Engine type
- in-line
- Cooling system
- water-cooled
- Other characteristics
- 4-stroke
- Power
350 ch
(350 hp)- Displacement
4 l
(1 gal)- Number of cylinders
6 unit
- Engine speed
3,800 rpm
(23,876 rad.min-1)- Bore
94 mm
(3.7 in)- Stroke
100 mm
(3.9 in)- Length
1,080 mm
(43 in)- Width
758 mm
(30 in)- Height
805 mm
(32 in)- Weight
460 kg
(1,014 lb)
Description

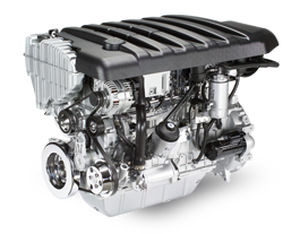

The MR706LX is a 4-stroke, 6 cylinders in line, 4.2L displacement turbocharged, aftercooled diesel engine with electronically controlled direct injection. It offers excellent performance with low fuel consumption.
Cooling is controlled by separate fresh and salt water circuits, with extractable hoses for easy maintenance.
The oil circuit (which is cooled by means of a fresh water heat exchanger), water and air circuits have been designed to reduce external flexible pipes to minimum to reduce loss of liquids in the bilge.
Auxiliary devices are driven by a Poly-V belt to ensure excellent power transfer and long life compared to traditional solutions. This engine thanks to its displacement and 6-cylinder in-line architecture guarantees high torque at low revs . and a low level of vibration at the top of its class.
The dimensions and weight of the engine make the engine easy to installing small spaces.
