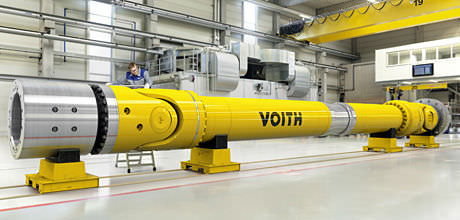

Boat drive shaft universal joint E Series

Boat drive shaft universal joint - E Series - Voith Turbo
Boat drive shaft universal joint - E Series - Voith Turbo
Boat drive shaft universal joint - E Series - Voith Turbo - image - 2
Boat drive shaft universal joint - E Series - Voith Turbo - image - 3
Boat drive shaft universal joint - E Series - Voith Turbo - image - 4
Boat drive shaft universal joint - E Series - Voith Turbo - image - 5
Boat drive shaft universal joint - E Series - Voith Turbo - image - 6
Add to favorites
Compare this product


Characteristics

Options
boat drive shaft

Description

E Series universal joint shafts are intended for high-performance drives with max­imum torques. The principal features of this series are very high torque capacity and increased bearing life. In comparison with the other series, E Series joints have the greatest torque cap­acity. A high-performance universal joint shaft can be equipped with an E joint at both ends or one E joint can be combined with a CH joint. An E universal joint shaft transmits a torque up to 20% greater than a CH universal joint shaft with the same joint diameter. The E Series is ideal if installation space is limited. Our engineers will design a complete drive solution just for you. This means you get engineering and products from a single source: Universal joint shafts, connection components and shaft support systems. This saves time and money when building your machine or system. Technical data Torques with a single load MZ up to 13,620 kNm Torques with a reversing load MDW up to 9,380 kNm Deflection angle up to 10° Rotation diameter of the joints 580 mm – 1,220 mm Connections Flanges with face key Flanges with Hirth coupling Quick-release couplings Connection components for rolling mills (wobblers) Adapters
