Boat winch

parasailhydraulic drive

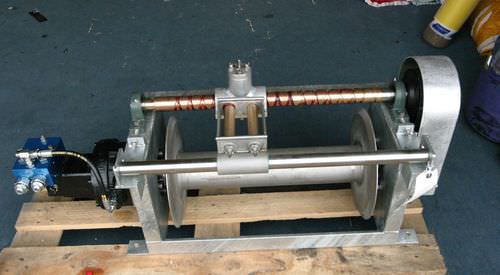

The Waterbird winch system is a result of over 19 years development. At the heart of the system is a sophisticated variable displacement piston pump, which can automatically alter oil flow rates according to demand. It also features a self disengaging mode to eliminate excessive wear on all working components when not winching. The new stainless steel 300m capacity high speed drum (70rpm) which features our new and improved stainless steel spiral line feeder bar system and stronger winch drum assembly means an operator has the most reliable and long lasting winch system of any winchboat available. Specification: Aluminium hydraulic tank (80ltr/17gal) Sea water oil cooler Stainless winch drum with ST ST line feeder assembly - hydraulic safety brake Line capacity 300m/985ft 10mm Doublebraid rope (3,690kg breaking strain) Oil type Telas 32 hydraulic low foam Maximum operating pressure 186bar/2700 psi Stand-by operating pressure 27bar/400psi
