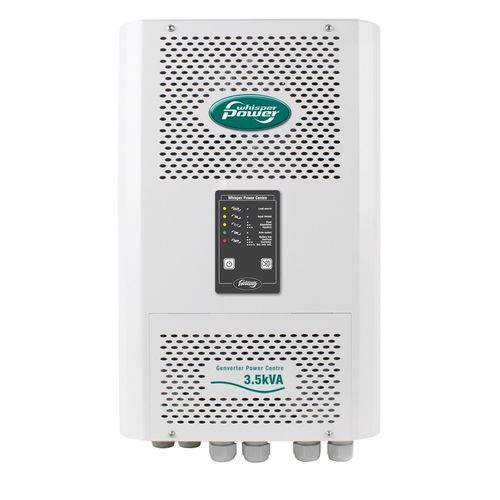

Voltage inverter-charger WPC

DCACmarine

INVERTER SPECIFICATIONS Nominal battery voltage - 12 VDC Input voltage range - 9.5 - 17 VDC Continuous power @ 25°C - 2000 VA Power 30 min. @ 25°C - 2000 VA Power 5 sec. @ 25°C - 6000 VA Maximum load - Up to short-circuit (fully protected) Maximum a-symmetric load - Up to continuous power Load detection (stand-by) - 2 to 25 W (AES) Automatic Enable System Power factor - 0.1-1 Efficiency (@ full load) - 93% Consumption OFF/Stand-by/ON - 1.4 W / 1.6 W / 9 W Output voltage - Pure sine wave 230 VAC (+/- 2%) Output frequency - 50 Hz / 60 Hz (1) +/- 0.05% (crystal controlled) Harmonic distortion (voltage) - <2% THD Overload and short-circuit protection - Automatic disconnection with 3 time restart attempt Overheat protection - Warning before shut-off with automatic restart BATTERY CHARGER SPECIFICATIONS Charge Characteristic - 6-step Bulk-Absorption-Floating-Equalization-reduced floating-periodic absorption. Number of steps, thresholds,return amps completely adjustable. Maximum charging current - 100 A Temperature compensation - With Whisper temperature sensor WPC-BTS Power Factor Correction (PFC) - EN 61000-3-2 Input voltage range - 150 to 250 VAC Input frequency range - 45 to 65 Hz Input current max. (transfer relay) / Output current max. - 30 A / 50 A Transfer time - <15 ms GENERAL DATA Weight - 25 kg Dimension hxwxd [mm] - 510 x 330 x 150 mm Protection degree - IP21 Color - RAL 9003 Conformity - Directive EMC 2004/108/EC : EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, 62040-2. Low voltage directive 2006/95/EC : EN 62040-1-1, EN 50091-2, EN 60950-1 Operating temperature range - -20..+40°C, derating to 55°C Relative humidity (operational) - 95% without condensation Ventilation - Forced from 45°C Warranty - 2 years
