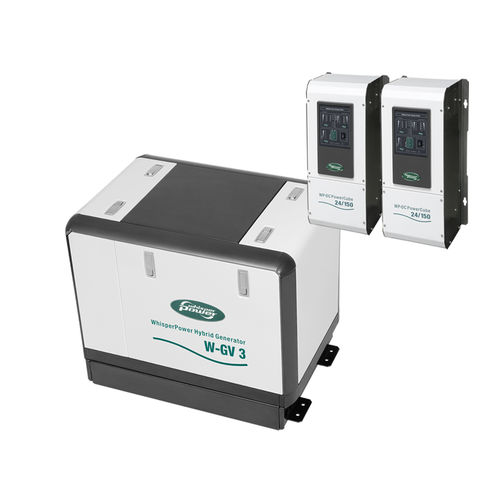

Diesel generator set W-GV 3 MOBILE

for boatswith alternator

All-in-one DC generator system World-wide plug-in facility from 90 VAC - 265 VAC Fast charging, reduced running time Minimal audible noise Hardly any vibration Installation examples: DC applications (24 V or 48 V), range extender or as DC powerpack MAIN SPECIFICATIONS System output - 8.6 kW (24 V - 300 A) Charge current - 300 A at 24 VDC or 160 A at 48 VDC DC Charge module - 2x DC PowerCube Harmonic distortion - > 5% Parallel operation - Yes Standard remote panel - Yes ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 1500 .. 2400 adjustable Efficiency - 94% SPECIFICATIONS DIESEL ENGINE Engine model - Kubota (Mitsubishi optional) Number of cylinders - 3 Engine cooling - Radiator cooling Starting - Electrical (12 V) Starter battery - 12 V - 100 Ah (optional) 12 V Battery charger - Included DIMENSIONS & WEIGHT Length - 720 mm Width - 544 mm Height - 599 mm Dry weight - 171 kg Length PowerCube - 575 mm Width PowerCube - 221 mm Height PowerCube - 316 mm Weight PowerCube - 26 kg INSTALLATION ACCESSORIES Dry Exhaust pipe - Ø 1 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
