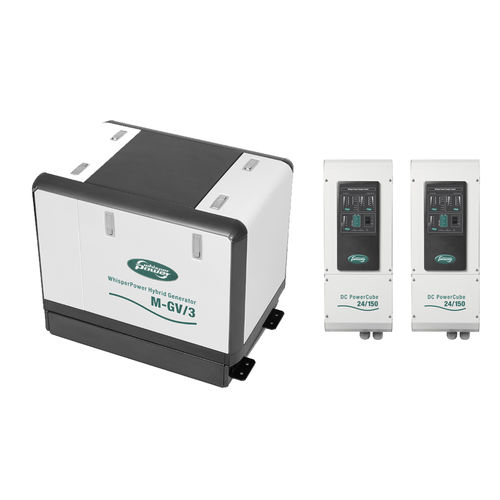

Diesel generator set M-GV 3

for boatswith alternator

All-in-one DC generator system World-wide plug-in facility from 90 VAC - 265 VAC Fast charging, reduced running time Minimal audible noise Hardly any vibration Installation examples: range extender, electrical propulsion (24 V / 48 V) or as DC powerpack MAIN SPECIFICATIONS System output - 8.6 kW (24V - 300 A) Charge current - 300 A at 24 VDC or 160 A at 48 VDC DC Charge module - 2x DC PowerCube Harmonic distortion - > 5% Parallel operation - Yes Standard remote panel - Yes ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 1500 .. 2500 adjustable SPECIFICATIONS DIESEL ENGINE Engine model - Kubota D722 (Mitsubishi optional) Number of cylinders - 3 Capacity - 719 cc Air consumption - < 1.22 m³ / min Engine cooling - Indirect watercooling Fuel consumption - 1.2 - 3 l/hr Starting - Electrical (12 V) Starter battery - 12 V - 80 Ah (optional) 12 V Battery charger - Included DIMENSIONS & WEIGHT Length - 721 mm Width - 544 mm Height - 599 mm Dry weight - 171 kg Length PowerCube - 575 mm Width PowerCube - 221 mm Height PowerCube - 316 mm Weight PowerCube - 26 kg INSTALLATION ACCESSORIES Wet exhaust - Ø 40 mm Dry Exhaust pipe - Ø 1 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
