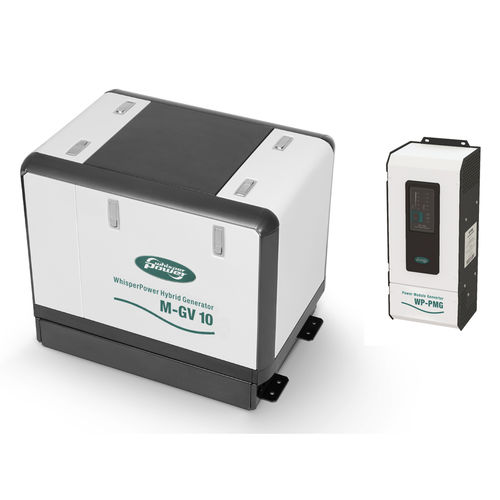

Diesel generator set M-GV 10

for boats

3-cylinder Permanent Magnet generator with external PMG box (power module) Excellent choice to replace traditional gensets 10 kVA (8 kW) continuous 230 V power from your programmable speed generator system High efficiency and strong peak power Outstanding voltage stability and a pure sine wave Saving fuel and ensuring smooth running of your genset Genverter Power, the best choice for your energy supply MAIN SPECIFICATIONS System output - 10 kVA / 8 kW Inverter Module - WP-PMG frame 2 Output voltage / frequency - 230 V / 50 Hz Harmonic distortion - < 3% Parallel operation - No ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 2200 .. 2800 Efficiency - 94% SPECIFICATIONS DIESEL ENGINE Engine - Kubota (Mitsubishi optional) Number of cylinders - 3 Capacity - 719 cc Air consumption - 1.22 m3 / min Engine cooling - Indirect watercooling Fuel consumption - 1.2 - 2.5 l/hr Starting - Electrical - 12 Volt Starter battery - 12 V / 80 Ah (optional) 12V Alternator - Included DIMENSIONS & WEIGHT Length - 721 mm Width - 544 mm Height - 599 mm Dry weight - 171 kg Length PMG - 200 mm Width PMG - 174 mm Height PMG - 451 mm Weight PMG - 9.9 kg OTHER SPECIFICATIONS Wet exhaust - Ø 40 mm Dry Exhaust pipe - Ø 1 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
