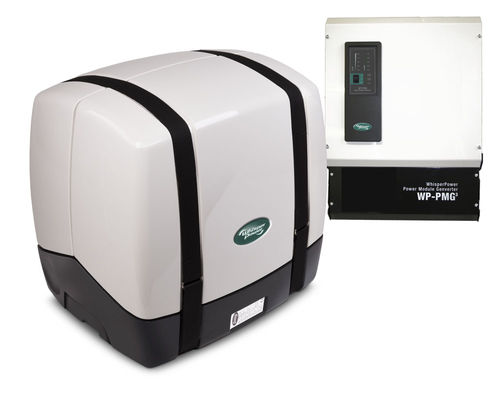

Diesel generator set Piccolo 15

for boatssoundproofedwith alternator

The most silent and compact generator in the market! 3-cylinder Permanent Magnet generator with external PMG box (power module) 15 kVA (12 kW) continuous 230 V power from your programmable speed generator system High efficiency and strong peak power Outstanding voltage stability and a pure sine wave Saving fuel and ensuring smooth running of your genset Genverter Power, the best choice for your energy supply EPA /Tier 4 (USA standard) and Stage V certified Parallel use possible with the TWIN power solution MAIN SPECIFICATIONS System output - 15 kVA / 12 kW RPM range - 2200 .. 3200 adjustable Noise Level - 54 dB (A) at 7 m, 65 dB (A) at 1 m Output voltage / frequency - 230 V / 50 Hz, (or 120 V / 60 Hz) Harmonic distortion - < 3% Parallel operation - Yes Standard remote panel - Yes ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 2200 .. 3200 adjustable SPECIFICATIONS DIESEL ENGINE Engine - Kubota D1105 Number of cylinders - 3 Capacity - 1.123 cc Air consumption - < 1.43 m³ / min Engine cooling - Indirect watercooling Fuel consumption - 1.5-4 l/hr Starter battery - 12 V / 100 Ah (optional) DIMENSIONS & WEIGHT Length - 875 mm Width - 570 mm Height - 690 mm Dry weight - 210 kg Length PMG - 542 mm Width PMG - 385 mm Height PMG - 255 mm Weight PMG - 22.25 kg OTHER SPECIFICATIONS Wet exhaust - Ø 40 mm Dry Exhaust pipe - Ø 1,5 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
