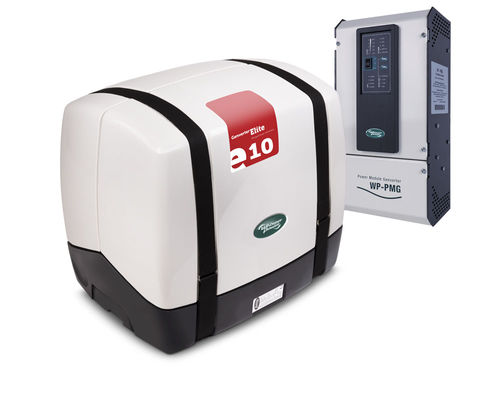

Diesel generator set Elite 10 MOBILE

for boatssoundproofedwith alternator

The most silent and compact generator in the market! 3-cylinder Permanent Magnet generator with external PMG box (power module) 10 kVA (8 kW) continuous 230 V power from your programmable speed generator system High efficiency and strong peak power Outstanding voltage stability and a pure sine wave Saving fuel and ensuring smooth running of your genset Genverter Power, the best choice for your energy supply EPA /Tier 4 (USA standard) and Stage V certified Parallel use possible with the TWIN power solution MAIN SPECIFICATIONS System output - 10 kVA / 8 kW Inverter Module - WP-PMG frame 2 Output voltage / frequency - 230 V / 50 Hz, (or 120 V / 60 Hz) Harmonic distortion - < 3% Parallel operation - Yes Standard remote panel - Yes ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 2200 .. 2800 Efficiency - 94% SPECIFICATIONS DIESEL ENGINE Engine - Kubota D722 (Mitsubishi optional) Number of cylinders - 3 Capacity - 719 cc Air consumption - < 1.22 m³ / min Engine cooling - Indirect Fuel consumption - 1.2 - 3.0 l/hr Starting - Electrical - 12 Volt Starter battery - 12 V / 100 Ah (optional) 12V Alternator - Included DIMENSIONS & WEIGHT Length - 740 mm Width - 550 mm Height - 622 mm Dry weight - 175 kg Length PMG - 451 mm Width PMG - 200 mm Height PMG - 174 mm Weight PMG - 9.9 kg OTHER SPECIFICATIONS Dry Exhaust pipe - Ø 1 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
