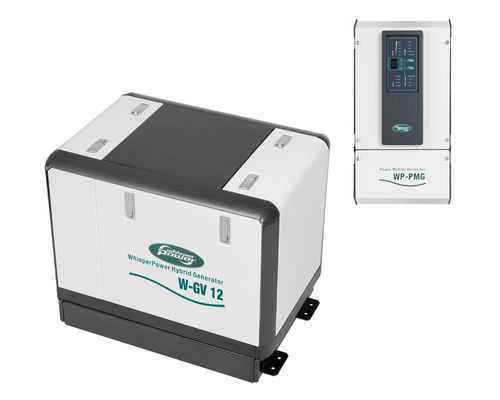

3-cylinder Permanent Magnet generator with external PMG box (power module)
Excellent choice to replace traditional gensets
12 kVA (10 kW) continuous 230 V power from your programmable speed generator system
High efficiency and strong peak power
Outstanding voltage stability and a pure sine wave
Saving fuel and ensuring smooth running of your genset
Genverter Power, the best choice for your energy supply
MAIN SPECIFICATIONS
System output - 12 kVA / 10 kW
RPM range - 2200 .. 2800 adjustable
Noise Level - 54 dB (A) at 7 m, 65 dB (A) at 1 m
Output voltage / frequency - 230 V / 50 Hz
Harmonic distortion - < 3%
Parallel operation - No
ALTERNATOR SPECIFICATIONS
Type - Permanent Magnet Alternator (PM)
RPM range - 2000 .. 2600
Efficiency - 94%
SPECIFICATIONS DIESEL ENGINE
Engine - Kubota
Number of cylinders - 3
Capacity - 1.123 cc
Air consumption - 1.43 m3 / min
Engine cooling - Indirect radiator
Fuel consumption - 1.2 - 4 l/hr
Starting - Electrical - 12 Volt
Starter battery - 12 V / 100 Ah (optional)
12V Alternator - Included
DIMENSIONS & WEIGHT
Length - 822 mm
Width - 563 mm
Height - 660 mm
Dry weight - 210 kg
Length PMG - 220 mm
Width PMG - 174 mm
Height PMG - 552 mm
Weight PMG - 12 kg
OTHER SPECIFICATIONS
Dry Exhaust pipe - Ø 1.0 inch BSP
Location oil refill cap - Top & side
Max. operating angle - 25º in all directions
