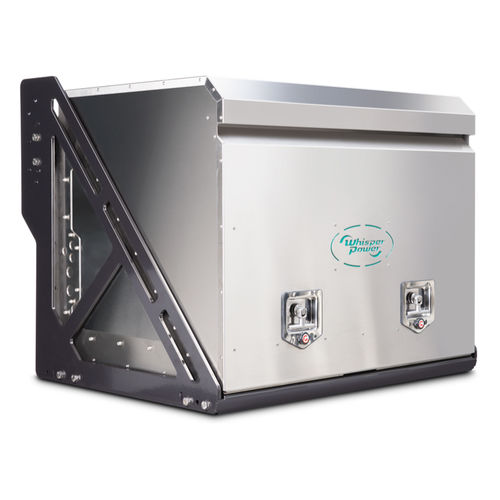

Diesel generator set Elite 8 Outdoor

for boatssoundproofedwith alternator

2-cylinder Permanent Magnet generator with external PMG box (power module) Excellent choice to replace traditional gensets 8 kVA (6 kW) continuous 230 V power from your programmable speed generator system High efficiency and strong peak power Outstanding voltage stability and a pure sine wave Saving fuel and ensuring smooth running of your genset Genverter Power, the best choice for your energy supply MAIN SPECIFICATIONS System output - 8 kVA / 6kW Inverter Module - WP-PMG frame 2 Output voltage / frequency - 230 V / 50 Hz Harmonic distortion - <5% Parallel operation - Yes ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 2200 .. 2800 Efficiency - 94% SPECIFICATIONS DIESEL ENGINE Engine - Kubota Z482 (Mitsubishi optional) Number of cylinders - 2 Capacity - 499 cc Engine cooling - Radiator cooling Fuel consumption - 1.2 - 2.5 l/hr Starting - Electrical - 12 Volt Starter battery - 12 V / 80 Ah (optional) 12V Alternator - Included DIMENSIONS & WEIGHT Length - 742 mm Width - 597 mm Height - 670 mm Dry weight - 200 KG + 9.9 kg Length PMG - 490 mm Width PMG - 198 mm Height PMG - 188 mm Weight PMG - 9.9 kg OTHER SPECIFICATIONS Dry Exhaust pipe - Ø 1 inch BSP (prefitted exhaust system optional) Location oil refill cap - Top & side Max. operating angle - 25º in all directions
