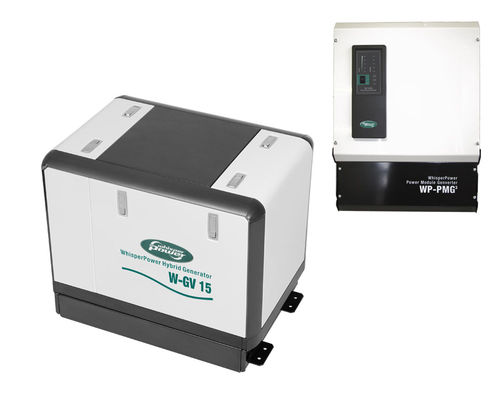

Diesel generator set W-GV 15 MOBILE

for boatswith alternator

3-cylinder Permanent Magnet generator with external PMG box (power module) Excellent choice to replace traditional gensets 15 kVA (12 kW) continuous 230 V power from your programmable speed generator system High efficiency and strong peak power Outstanding voltage stability and a pure sine wave Saving fuel and ensuring smooth running of your genset Genverter Power, the best choice for your energy supply MAIN SPECIFICATIONS System output - 15 kVA / 12 kW RPM range - 2200 .. 2800 adjustable Noise Level - 54 dB (A) at 7 m, 65 dB (A) at 1 m Inverter Module - WP-PMG frame 3 Output voltage / frequency - 230 V / 50 Hz Harmonic distortion - <3% Parallel operation - No ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PM) RPM range - 2000 .. 2600 Efficiency - 94% SPECIFICATIONS DIESEL ENGINE Engine - Kubota Number of cylinders - 3 Capacity - 1.123 cc Air consumption - 1.43 m3 / min Engine cooling - Indirect radiator Fuel consumption - 1.2 - 4 l/hr Starting - Electrical - 12 Volt Starter battery - 12 V / 100 Ah (optional) 12V Alternator - Included DIMENSIONS & WEIGHT Length - 822 mm Width - 563 mm Height - 660 mm Dry weight - 210 kg Length PMG - 220 mm Width PMG - 174 mm Height PMG - 552 mm Weight PMG - 12 kg OTHER SPECIFICATIONS Dry Exhaust pipe - Ø 1.5 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
