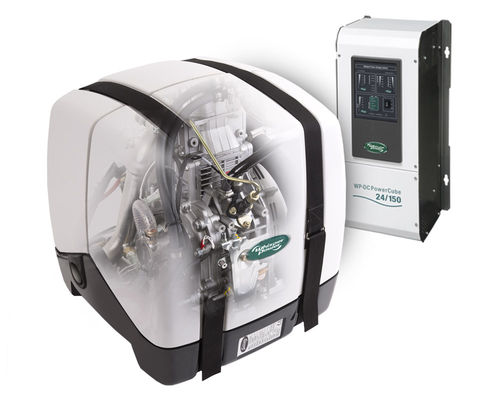

Diesel generator set Piccolo GV 1

for boatssoundproofedwith alternator

The most silent and compact generator in the market! 1-cylinder Permanent Magnet generator with external DC Powercube High efficiency and strong peak power Outstanding voltage stability and a pure sine wave Saving fuel and ensuring smooth running of your genset Genverter Power, the best choice for your energy supply MAIN SPECIFICATIONS System output - 2.4 kW Charge current - 80 A at 24 VDC or 40 A at 48 VDC DC Charge module - DC PowerCube Harmonic distortion - > 5% Parallel operation - Yes Standard remote panel - Yes ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 2800...3200 SPECIFICATIONS DIESEL ENGINE Engine model - WhisperPower WP1 Number of cylinders - 1 Capacity - 309 cc Engine cooling - Indirect watercooling Fuel consumption - 0.8 ... 1.2 l/hr Starting - Electrical (12 V) Starter battery - 12 V - 55 Ah (optional) 12 V Battery charger - Included 20 m DIMENSIONS & WEIGHT Length - 450 mm Width - 461 mm Height - 520 mm Dry weight - 68 kg Length PowerCube - 575 mm Width PowerCube - 221 mm Height PowerCube - 316 mm Weight PowerCube - 26 kg INSTALLATION ACCESSORIES Wet exhaust - Dry Exhaust pipe - Ø 1 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
