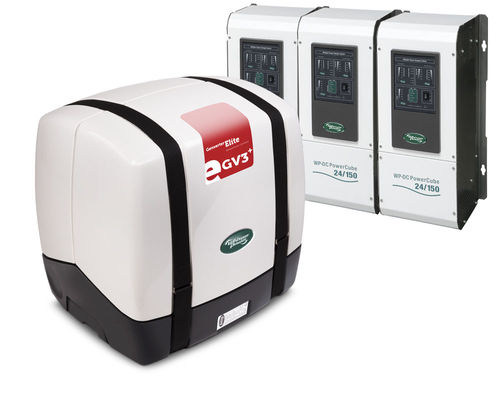

Diesel generator set Elite GV 3 Plus MOBILE

for boatswith alternator

Ask for our 12 kWatt GV 3 Plus model in case you need more charging power (for 3 x DC PowerCube). MAIN SPECIFICATIONS System output - 12 kW ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 1500 .. 2500 adjustable SPECIFICATIONS DIESEL ENGINE Engine model - Kubota D1105 Number of cylinders - 3 Capacity - 1.123 cc Air consumption - < 1.43 m³ / min Engine cooling - Indirect Fuel consumption - 1.5-4 l/hr Starting - Electrical (12 V) Starter battery - 12 V - 80 Ah (optional) 12 V Battery charger - Included DIMENSIONS & WEIGHT Length - 875 mm Width - 570 mm Height - 690 mm Dry weight - 210 kg Length PowerCube - 575 mm Width PowerCube - 221 mm Height PowerCube - 316 mm Weight PowerCube - 26 kg INSTALLATION ACCESSORIES Dry Exhaust pipe - Ø 1.5 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
