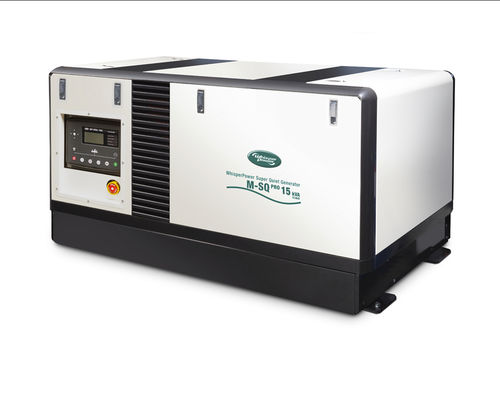

Diesel generator set M-SQ PRO 15

for boats

MAIN SPECIFICATIONS Nominal power 25º - 15 kVA / 12 kW (20 kVA / 15 kW at 60 Hz) Generator - Aircooled Output frequency - 50 Hz / 60 Hz Harmonic distortion - < 5 % Frequency tolerance (Hz) - ± 5 % Voltage regulation - AVR Starter battery - 15 V / 100 A Battery charge current - 12 V / 40 A Sound level - 55 dB SPECIFICATIONS DIESEL ENGINE Engine model - Kubota V1505 BG Number of cylinders - 4 Cylinder capacity - 1505 cc Bore & stroke - 78 x 78.4 mm Air consumption - 1.5 m³ / min Engine cooling - Indirect Fuel consumption (no load - full load) - 1-4 l/hr DIMENSIONS & WEIGHT Length - 1145 mm Width - 625 mm Height - 690 mm Dry weight - 390 kg OTHER SPECIFICATIONS Dry exhaust pipe - Ø 1.5 inch BSP Wet exhaust - Ø 51 mm Max. operating angle - 25º in all directions REMOTE CONTROL PANELS Deepsea controller - Optional DDC Control Panel - Standard WP-Touch full colour panel 7” - Optional Bus connectivity - WhisperConnect / NMEA 2000
