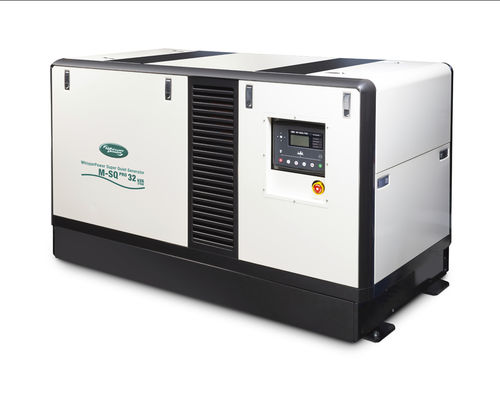

Diesel generator set M-SQ PRO 32

for boats

Output power 30 kW at 1.500 RPM 3-phase power output (3x 400 VAC) P.T.O. option available (power take off) MAIN SPECIFICATIONS Nominal power 25º - 32 kVA / 30 kW Generator - Aircooled Output frequency - 230 V / 50 Hz - 3x 400 VAC Harmonic distortion - < 2 % Frequency tolerance (Hz) - ± 5 % Voltage regulation - AVR + EBS Starter battery - 12 V Battery charge current - 40 A Sound level - 58 dB SPECIFICATIONS DIESEL ENGINE Engine model - Mitsubishi S4S - 4 Cylinder Number of cylinders - 4 Cylinder capacity - 3331 cc Bore & stroke - 94 × 120 mm Air consumption - 2.8 m³/min Engine cooling - Indirect Fuel consumption (no load - full load) - 1-6 l/hr DIMENSIONS & WEIGHT Length - 1555 mm Width - 749 mm Height - 805 mm Dry weight - 640 kg OTHER SPECIFICATIONS Dry exhaust pipe - Ø 2 inch BSP Wet exhaust - Ø 63 mm Location oil refill cap - Top & side Max. operating angle - 25º in all directions REMOTE CONTROL PANELS Deepsea controller - Standard WP-Touch full colour panel 7” - Optional Bus connectivity - WhisperConnect / NMEA 2000
