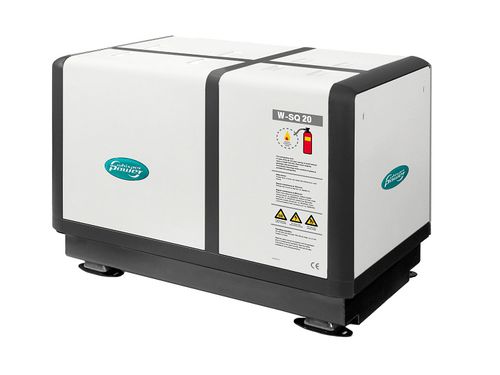

Diesel generator set W-SQ 20 MOBILE

for boats

MAIN SPECIFICATIONS Nominal power 25º - 20 kVA / 20 kW Generator - Aircooled Output frequency - 50 Hz Harmonic distortion - < 3 % Frequency tolerance (Hz) - ± 5 % Voltage regulation - AVR Starter battery - 12 V Battery charge current - 40 A Sound level - 58 dB SPECIFICATIONS DIESEL ENGINE Engine model - Mitsubishi S4S - 4 Cylinder Number of cylinders - 4 Cylinder capacity - 3331 cc Bore & stroke - 94 × 120 mm Air consumption - 2.8 m³/min Engine cooling - Indirect radiator Fuel consumption (no load - full load) - 1-6 l/hr DIMENSIONS & WEIGHT Length - 1260 mm Width - 680 mm Height - 800 mm Dry weight - 580 kg OTHER SPECIFICATIONS Dry exhaust pipe - Ø 2 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions REMOTE CONTROL PANELS DDC Control Panel - Standard WP-Touch full colour panel 7” - Optional Bus connectivity - WhisperConnect / NMEA 2000
