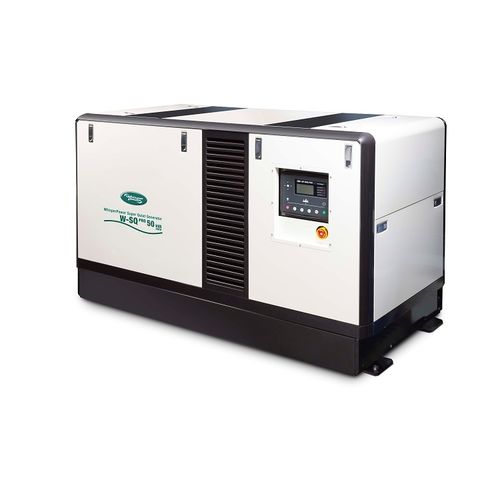

Diesel generator set W-SQ PRO 50 MOBILE

for boats

MAIN SPECIFICATIONS Nominal power 25º - 50 kVA / 40 kW Generator - Aircooled Output frequency - 230 V / 50 Hz - 3 x 400 VAC Harmonic distortion - < 3 % Frequency tolerance (Hz) - ± 5 % Voltage regulation - AVR Starter battery - 12 V Battery charge current - 60 A Sound level - 58 dB SPECIFICATIONS DIESEL ENGINE Engine model - Perkins-Sabre 4.4 GM - 4 Cylinder Number of cylinders - 4 Cylinder capacity - 4400 cc Bore & stroke - 105 x 127 mm Air consumption - 3.6 m3/min Engine cooling - Indirect radiator Fuel consumption (no load - full load) - 1-10 l/hr DIMENSIONS & WEIGHT Length - 1658 mm Width - 837 mm Height - 986 mm Dry weight - 1.000 kg OTHER SPECIFICATIONS Dry exhaust pipe - Ø 2 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions REMOTE CONTROL PANELS Deepsea controller - standard WP-Touch full colour panel 7” - Optional
