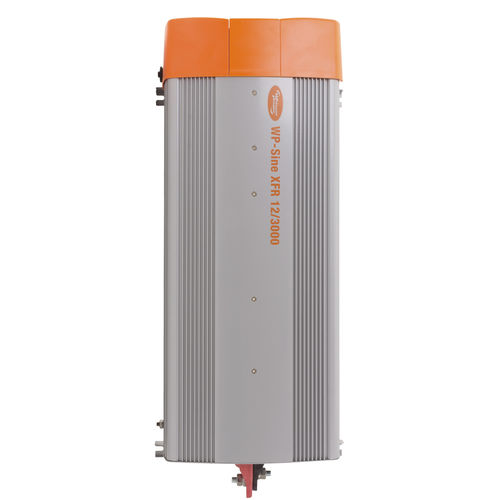

Voltage inverter XFR

DCACmarine

SPECIFICATIONS AC output - 1 Schuko / UK socket Power (Continuous) - 3000 W Power (Peak, 500 mSec) - 6000 W Output voltage - 230 V Output frequency - 50 Hz Total harmonic distortion (THD) - <5% pure sine wave DC INPUT Nominal battery voltage - 12 V Operation range - 10.5 - 15.5 VDC Input current - 270 A No load consumption - 1.6A base DC OUTPUT 5V USB - 2100 mA DISPLAY LED indicator - Yes Digital display - Input Voltage / Current, Output Power PROTECTIONS Input Undervoltage Warning - 11.0 VDC Input Undervoltage Shutdown - 10.5 VDC Input Undervoltage Recovery - 12.00 VDC Input Overvoltage Shutdown - 15.5 VDC Output Power Warning - Yes Output Power Shutdown - Yes Output Short Circuit - Yes Temperature Warning - Yes Temperature Shutdown - Yes Conformity - EC Council Directive 2004/108/EC Electromagnetic Compatibility Registration No: NTC 1310 406E & E-marking Operating temperature range - -20 - 55°C (derating above 40 ° C) Relative humidity in operation - 95% without condensation Ventilation - Forced cooling Dimension hxwxl [mm] - 539 × 230 × 114 mm Weight - 6.9 kg Battery connection - Threaded M8 screw Ground Lug Connection - Threaded M8 screw Warranty - 2 years
