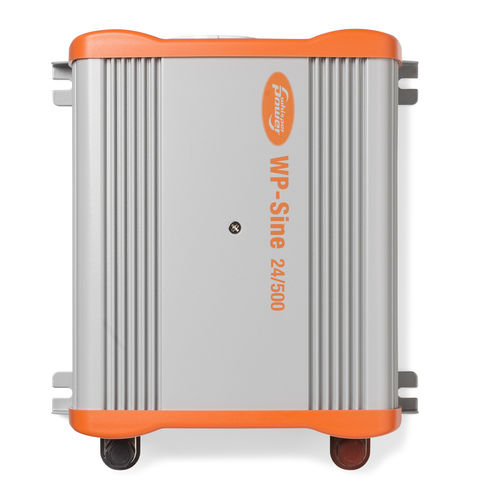

Voltage inverter 61140500

DCACmarine

SPECIFICATIONS AC output - 1 x Schuko socket Power (Continuous) - 500 W Power (Peak, 500 mSec) - 800 W Output voltage - 230 V Output frequency - 50 Hz Total harmonic distortion (THD) - <3% true sine wave DC INPUT Nominal battery voltage - 25 V Operation range - 21 .. 31 V Input current - 40 A No load consumption - <0.5 A DC OUTPUT 5V USB - N/A DISPLAY LED indicator - No Digital display - Input Voltage / Current, Output Power PROTECTIONS Input Undervoltage Warning - 22.4 V Input Undervoltage Shutdown - 21.0 V Input Undervoltage Recovery - 23.6 V Input Overvoltage Shutdown - 31.0 V Output Power Warning - Yes Output Power Shutdown - Yes Output Short Circuit - Yes Temperature Warning - Yes Temperature Shutdown - Yes Conformity - CE Operating temperature range - 0 .. 40°C Relative humidity in operation - 5 .. 90% non-condensing Ventilation - Forced cooling Dimension hxwxl [mm] - 82 x 175 x 200 mm Weight - 1.7kg Battery connection - M6 studs Ground Lug Connection - M6 studs Warranty - 2 years
