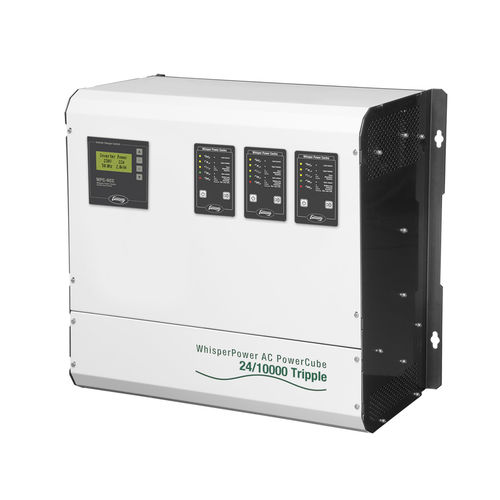

Voltage inverter 60203010

DCACmarine

GENERAL SPECIFICATIONS Output voltage (± 5%) - 3 x 380 V - 50 Hz (± 0.05%) Output waveform - Pure sine wave Nom. battery voltage - 24 V P30 power at 40 °C, cos phi 1 - 10000 VA Cont. power at 40 °C, cos phi 1 - 9000 VA Peak load 20sec - 30000 VA AC connection - Internal Efficiency - 92% Display/read-out - LED display Min. battery capacity - > 600 Ah Dimensions (h x w x d) - 700 x 316 x 575 mm Weight - 60 kg Approvals - CE, ABYC compliant TECHNICAL SPECIFICATIONS Technology - Toroidal transformer Low battery voltage, switch off - 19 V ± 0.5 V Low battery voltage, switch on - 22 V ± 0.5 V High battery voltage, switch off - 32 V ± 0.5 V High battery voltage, switch on - 30 V ± 0.5 V Max. ripple on DC (battery) - 5% RMS Input current (nominal load) - 800 A No-load power consumption (ON mode) - 1.6 VA standby Min. cable size - 2 x 7 mm² Harmonic distortion typical - 40°Ca -13 to 176°F Protection degree - IP23 Cooling - Natural/forced Sound level - 48 dBA at 1 mtr Protections - Over heating, over load, short circuit, high battery, low battery ACCESSORIES DC battery cables - Pre-installed, max 2 metres Remote panel - Analogue on- off / DC-AC information Remote panel - Digital Power System Control Panel WhisperSwitch - Transfer switch Shore-Generator / Inverter Accessories - Touch panel 7 inch
