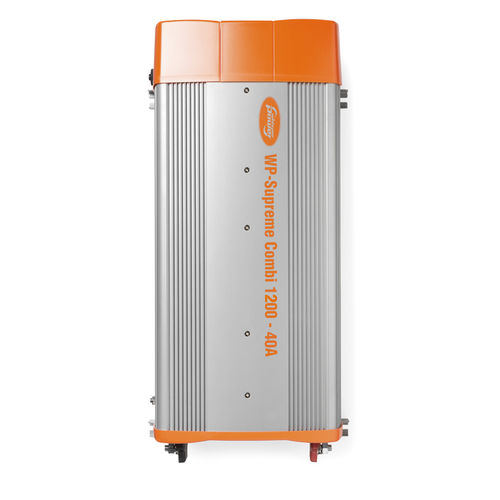

Voltage inverter-charger 61121240

DCmarine

INVERTER SPECIFICATIONS Output Power (Continuous) - 1200 W Output Power (Peak) - 2000 W Output (Voltage, Frequency) - 230 VAC - 50 Hz Output Current - 5.2 A Output Waveform - True Sine Wave (<3% THD) Peak efficiency - 90% No-load battery draw - 80% Dead Battery Charging - 1VDC Over Charge Protection - Yes, Error code Over Temperature Protection - De-rated / Shutdown AC TRANSFER SWITCH Transfer time - < 30 ms Transfer Relay - 16 A AC Input Source Setting - 8, 10, 16 A AC Input Port - Heavy duty connector 16A max AC Output Port 1 - Schuko, UK, Auz AC Output Port 2 - Heavy duty connector 16A max EGULATORY COMPLIANCE Standards - CE LVD EMI/EMC - CE EMC
