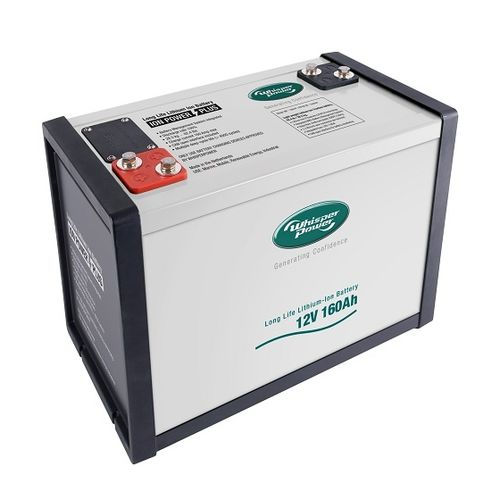

12 V battery 40290202

lithiumion

Premium Lithium-Ion battery • High power density, only 25 kg • 12 V 160 Ah, Li Fe PO4 • Can be discharged up to 100% • 5000 cycles at average use • Perfect for larger 12/24/48 VDC systems TECHNICAL SPECIFICATIONS Battery NR code - 4IFP227/415/315 Height (mm) - 313.00/314.00 Width (mm) - 413.50 / 414.50 Depth (mm) - 225,00 / 226.00 Weight - 28.3kg Nominal voltage (V) - 13.2 V Maximum voltage - 15.4 VDC End charge voltage - 14.6 DC Max charge current 100/c - 160 A Max float charge current - 52 A Minimum battery voltage - 8 VDC Minimum float charge - 10 VDC Max discharge current 3/C - 480 A Prolonged discharge current (max) - 52 A Pulsed discharge current (10 sec) - 1280 A Pulsed discharge current (60 sec) - 800 A Usable battery capacity at 20˚C - 160 Ah / 2112 Wh Usable battery capacity at - 20 ˚C - 104 Ah / 1372 Wh Usable capacity / in comparison to lead acid battery - 320 Ah Charge method - CCCV (Constant voltage) Temperature range (charging) - 0°C to 45°C Temperature range (discharging) - -20°C to +60°C Temperature range (storage) - -20°C to +60°C
