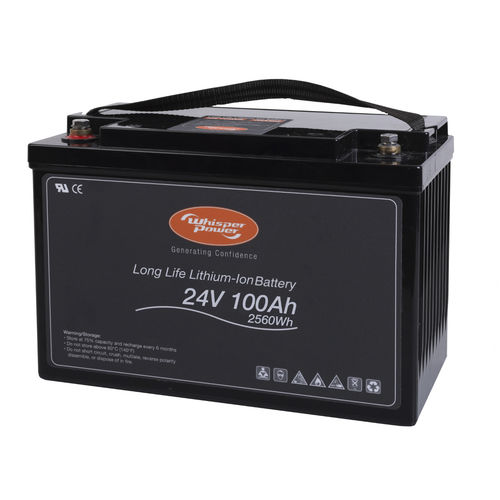

24 V battery 40291205

lithiumion

• High power density, only 29.6 kg • 24 V 100 Ah, Li Fe PO4 • Can be discharged up to 100% • >2000 cycles at average use • Perfect for 24 VDC systems TECHNICAL SPECIFICATIONS Height (mm) - 224 mm Width (mm) - 240 mm Weight - 29.6 kg Nominal voltage (V) - 25.6 V Maximum voltage - 31.2 V End charge voltage - 29.2 VDC +- 0,2 V Max charge current 100/c - 100 A Max float charge current - 50 A Minimum battery voltage - 16 VDC Usable battery capacity at 20˚C - 100 Ah / 2560 Wh Temperature range (charging) - 0°C to 45°C Temperature range (discharging) - -20°C to + 60°C Temperature range (storage) - 0°C to + 40°C
